Cat MH3032

Construction machines Cat MH3032

Cat MH3032

Industrial excavator

  • Sensitive hydraulics allow shortest working cycles
  • Enormous versatility thanks to many options
  • High stability even over the side
  • Unmatched cab comfort with best visibility
  • Unparalleled accessibility for maintenance and service
  • Maximum material handling with lowest diesel consumption
  • Electrically pre-controlled hydraulic system
  • electrical driven fans with automatic reversing function
  • Pay Load Weighing System from factory
  • E-Fence lift and swing limitation from factory
  • 1000 hrs. service interval

Machine Setup Simplification

  • At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
  • The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.


Cat Payload*

  • Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink® Productivity** to analyze jobsites and individual assets for remote management of production targets and key metrics.


Swing Assist

  • Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.


*Payload technologies are not legal for trade.
**VisionLink® subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07E


High Performance
  • The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emission standards with an aftertreatment system that requires no maintenance or downtime.
  • Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
  • The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
  • Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
  • Valve priority helps put hydraulic pressure and flow where you need it.
  • Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Take the Guesswork Out of Managing Your Equipment
  • Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
  • Combine Cat Payload with VisionLink® and remotely manage your production targets.
  • VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
  • Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
  • Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
  • Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.


*Data field availability can vary by equipment manufacturer.


Work in Comfort
  • Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
  • The cab has a wide seat that adjusts for operators of all sizes.
  • Get in and out of the cab easier using the tilt-up left console.
  • Control the machine comfortably with easy-to-reach controls all located in front of you.
  • Standard automatic climate control keeps you at the right temperature all shift long.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
  • Connect to personal devices via the standard radio’s USB ports and Bluetooth® technology.
  • Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.

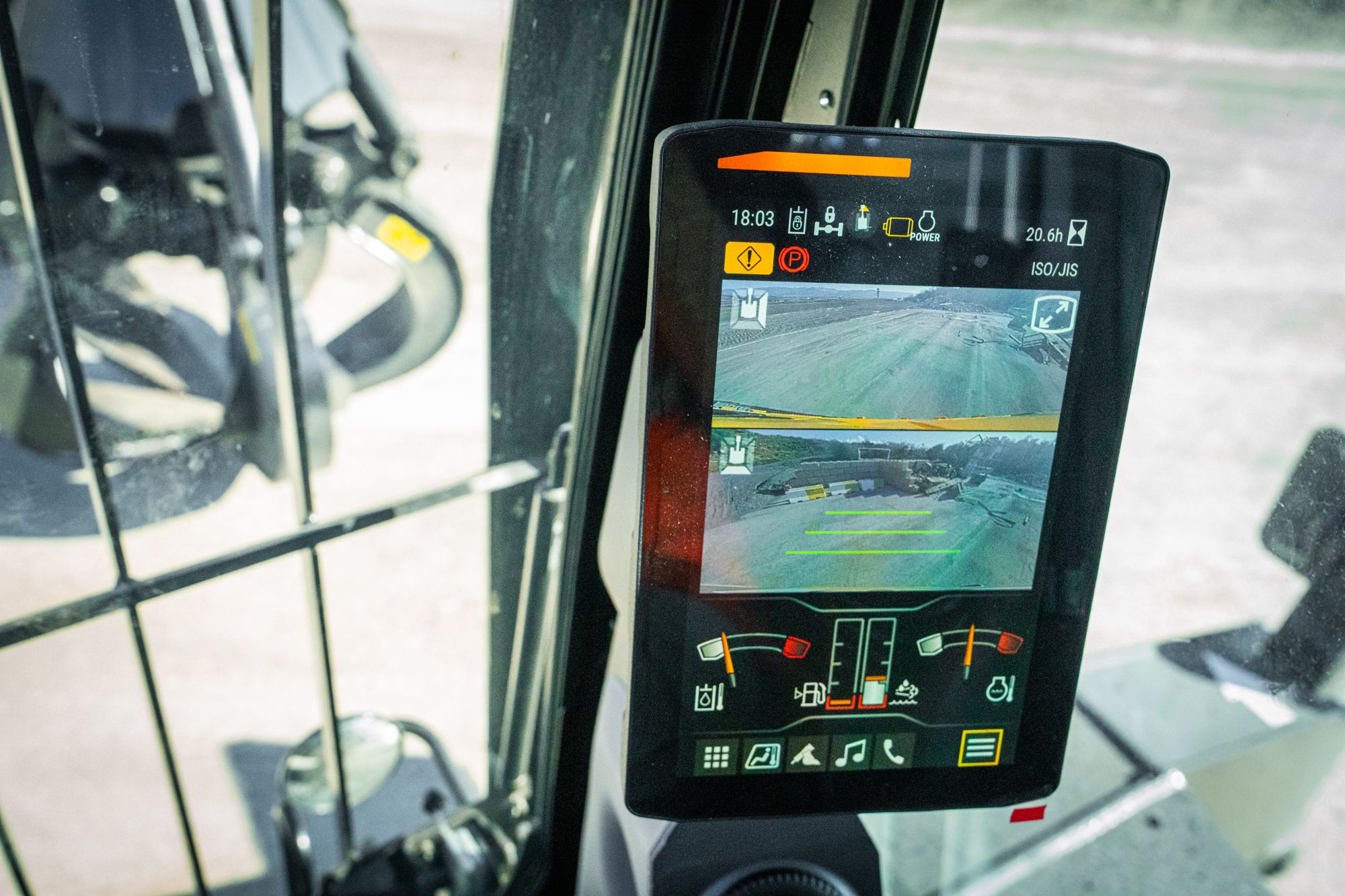

  • Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
  • Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.

Reliable, Durable, and Versatile
  • Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
  • The upper frame uses specially designed mountings to support the heavy-duty cab and the lower frame is reinforced to help enhance component durability.
  • Work up to 3000 m (9,840 ft) above sea level without de-rating.
  • Don’t let the temperature stop you from working. The machine has a standard cold start capability of -18° C (0°F).
  • Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
  • Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
  • An optional 20 kW generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
  • Expand your work capabilities with attachments for a variety of applications.

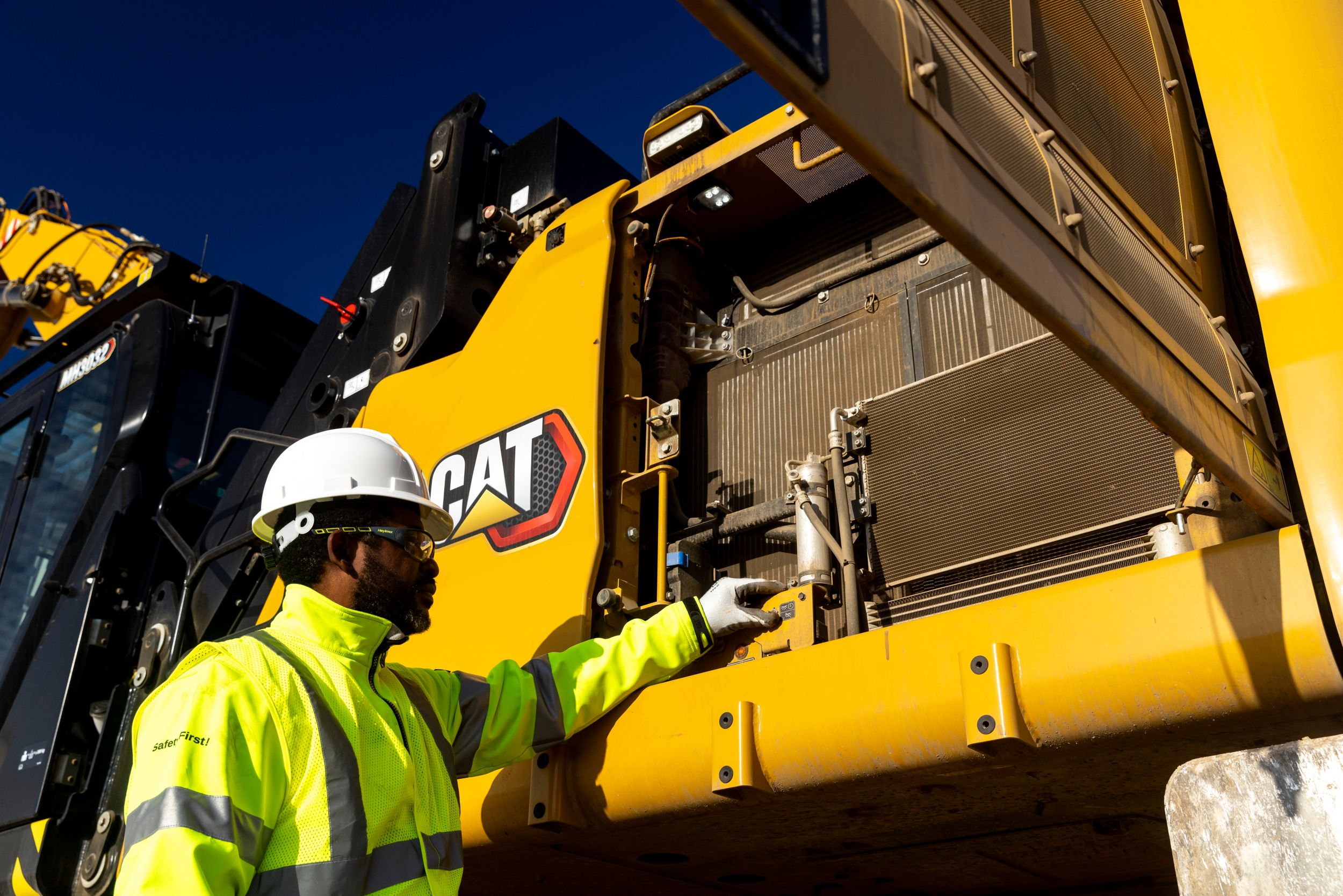

Maintenance
  • Track your machine's filter life and maintenance intervals via the in-cab monitor.
  • Scheduled Oil Sampling (S•O•SSM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
  • The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
  • The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
  • High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
  • Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Safety Features
  • Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
  • Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
  • Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
  • Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.

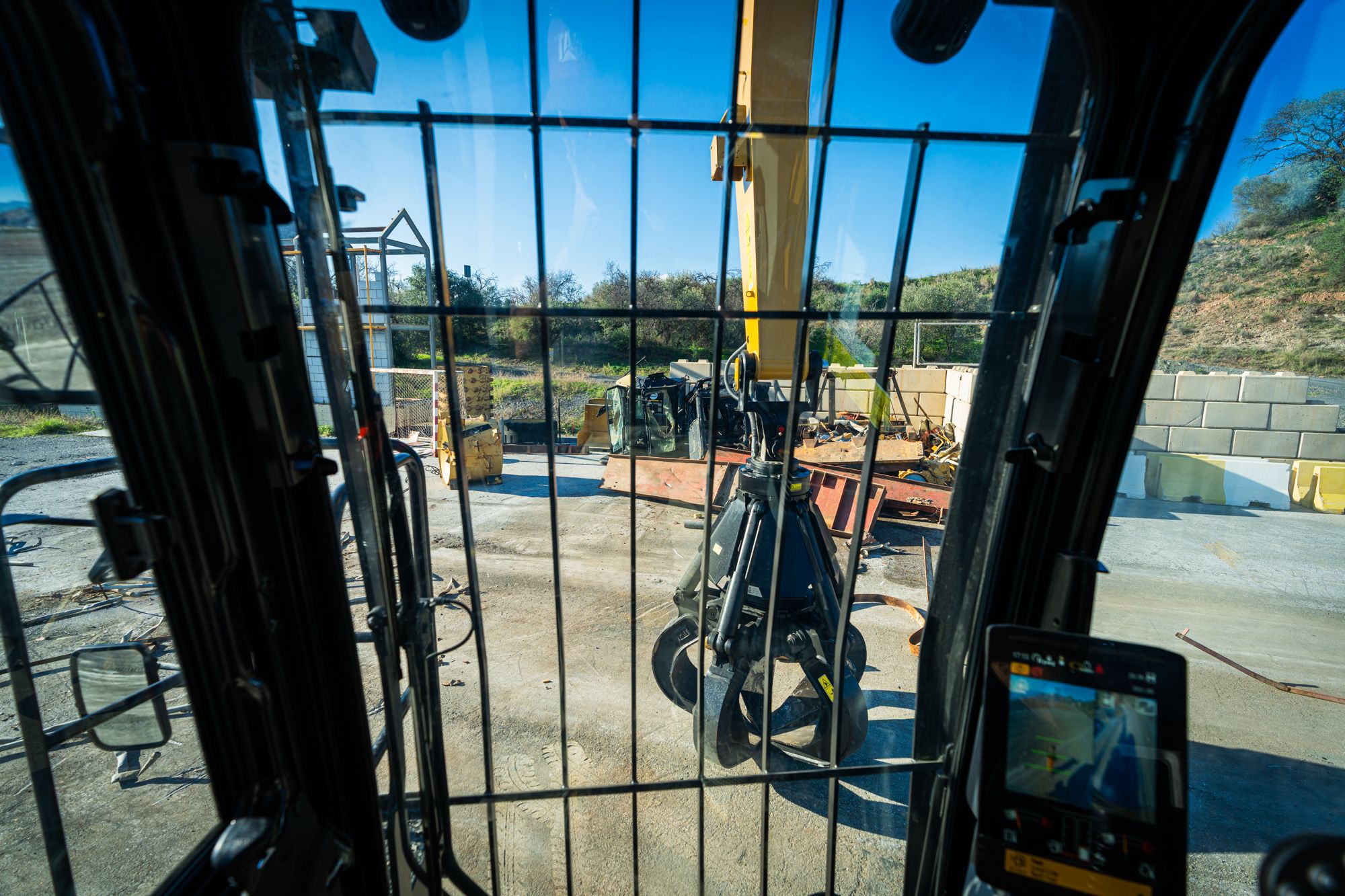

  • Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.

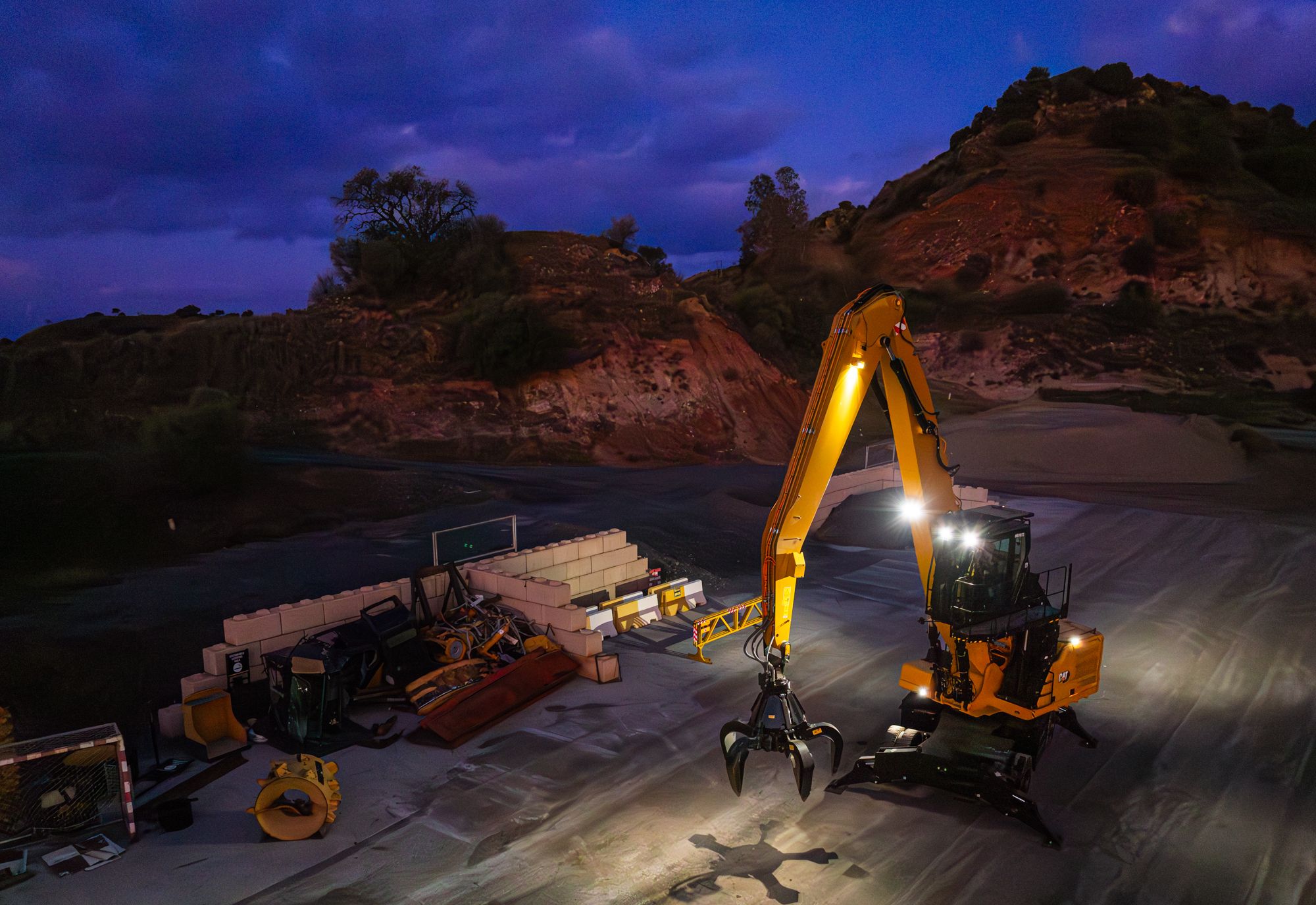

  • Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
  • Thick impact-resistant windshields fulfill P5A standards.
  • Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
  • Optional Operator Protective Guards (OPG) protect from falling and flying debris.
  • In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
  • Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
  • Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

Sustainability
  • The Cat® C7.1 diesel engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly job site fines.
  • Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
  • VisionLink® displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
  • Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
  • Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.


*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.


Dimensions
BoomMH 8.5 m (27'11")
Stick6.4 m (21'0") Drop Nose
Shipping Length11860 mm
Machine Length5785 mm
Tail Swing Radius3000 mm
Counterweight Clearance1465 mm
Cab Height- Lowered3500 mm
Cab Height- Lowered with FOGS3550 mm
Cab Height-Raised6095 mm
Cab Height- Raised with FOGS6145 mm
Wheel Base3200 mm
Shipping Width3000 mm
Ground Clearance249 mm
Undercarriage Length5781 mm

Engine
Engine ModelCat® C7.1
Net Power - ISO 9249150 kW
Net Power - ISO 9249 (DIN)204 hp (metric)
Engine Power - Maximum - ISO 14396151 kW
Engine Power - ISO 14396 (DIN)205 hp (metric)
Bore105 mm
Stroke135 mm
Displacement7 l
Note (1)Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)Net power advertised is the power available at the flywheel when engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed.

Hydraulic System
Maximum Pressure - Implements35000 kPa
Maximum Pressure - Swing28400 kPa
Maximum Pressure - Travel35000 kPa

Service Refill Capacities
Fuel Tank Capacity474 l
Cooling System25 l
Engine Oil25 l
Rear Axle - Housing (Differential)19.5 l
Final Drive2.2 l
Powershift Transmission3 l
Hydraulic System - Including Tank301 l
Hydraulic Tank147 l
Diesel Exhaust Fluid (DEF) Tank41 l

Swing Mechanism
Swing Speed7 r/min
Maximum Swing Torque82 kN·m

Transmission
Maximum Travel Speed18 km/h
Drawbar Pull145 kN
Maximum Gradeability45%

Weights
Operating Weight35800 kg
NoteOperating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration.

Working Ranges
Maximum Reach14080 mm
BoomMH 8.5 m (27'11")
Stick6.4 m (21'0") Drop Nose
Maximum Height15470 mm
Maximum Dump Height4670 mm
Maximum Depth4990 mm
Boom Pin Height10750 mm
