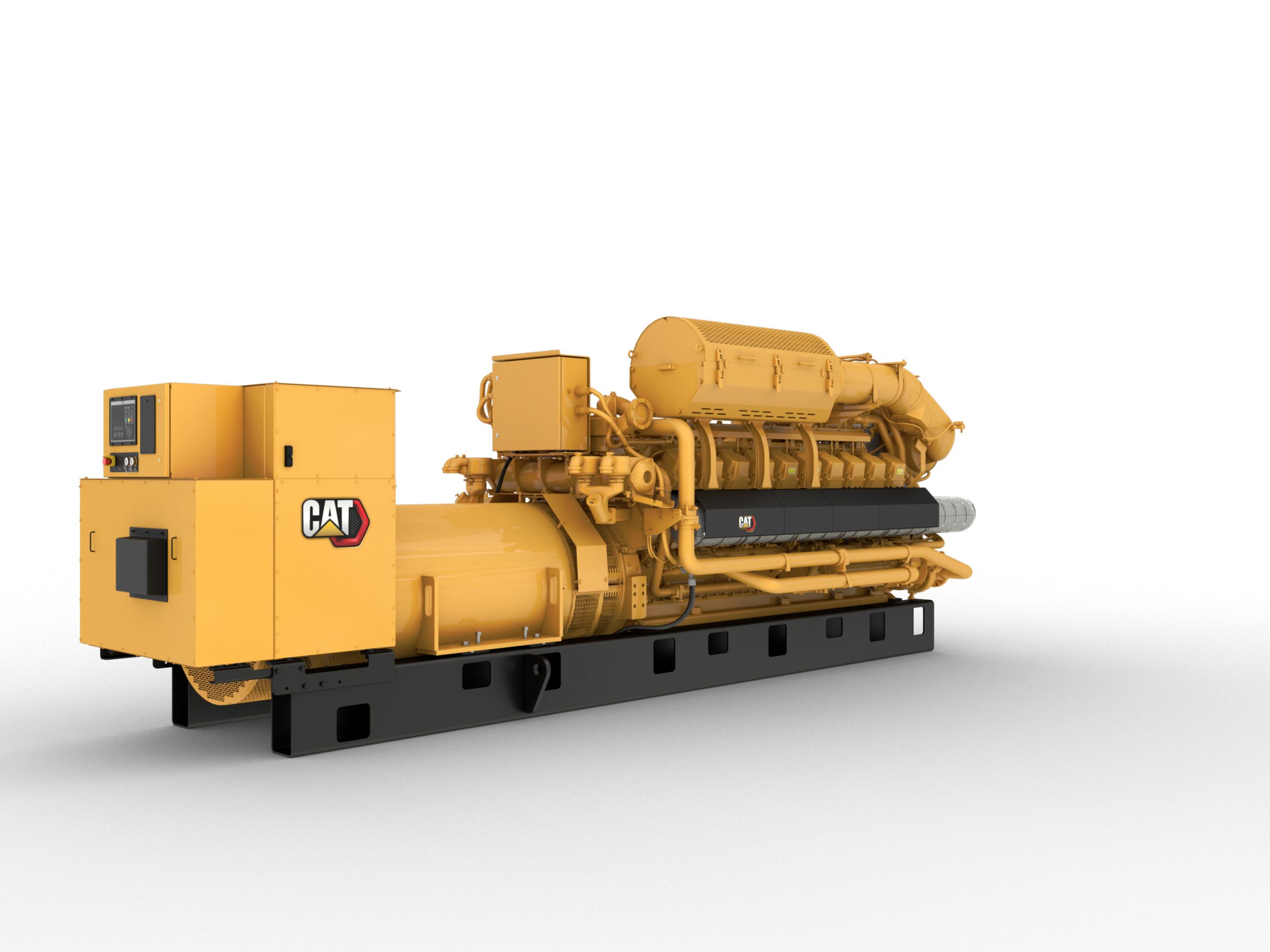

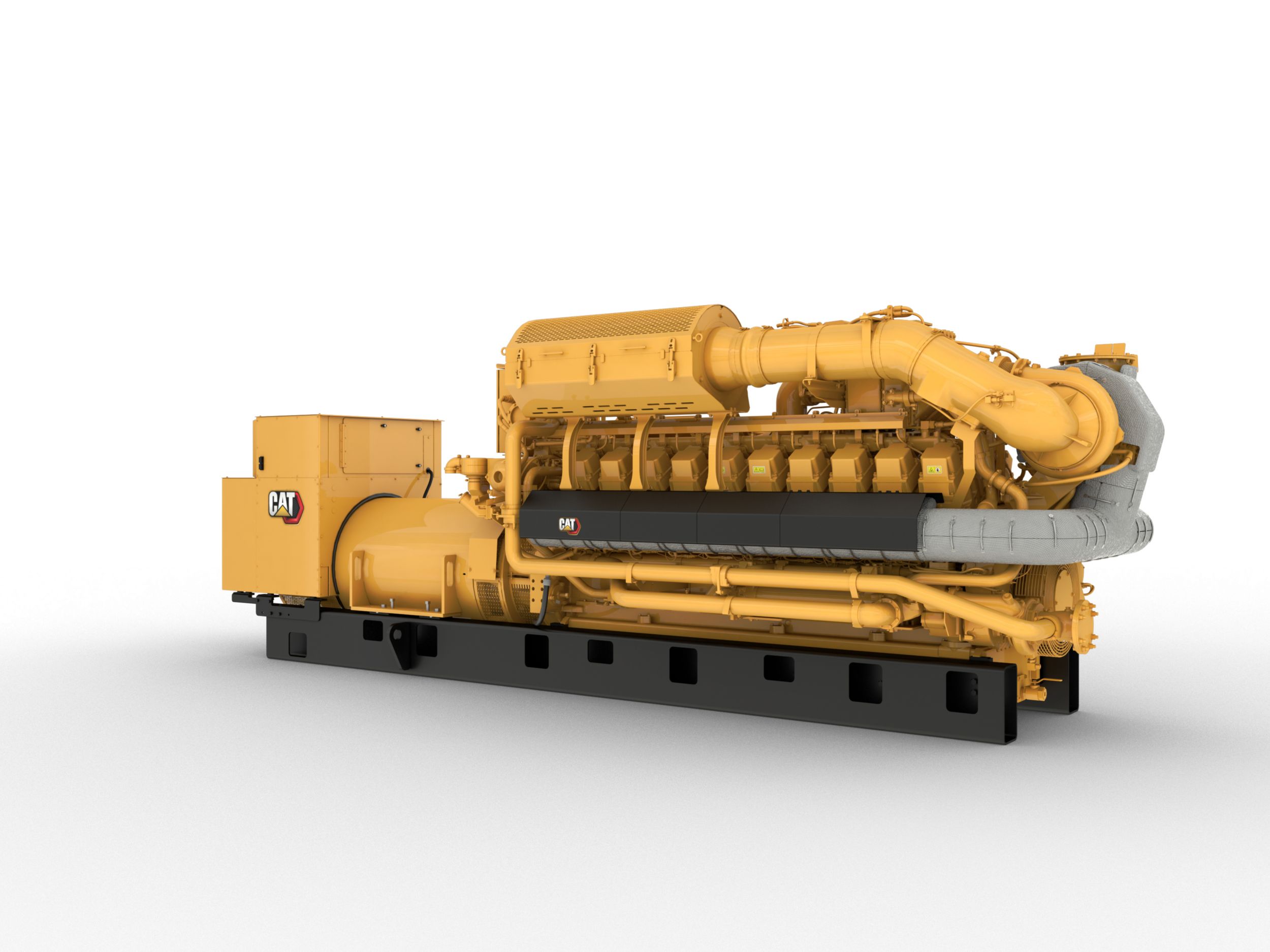

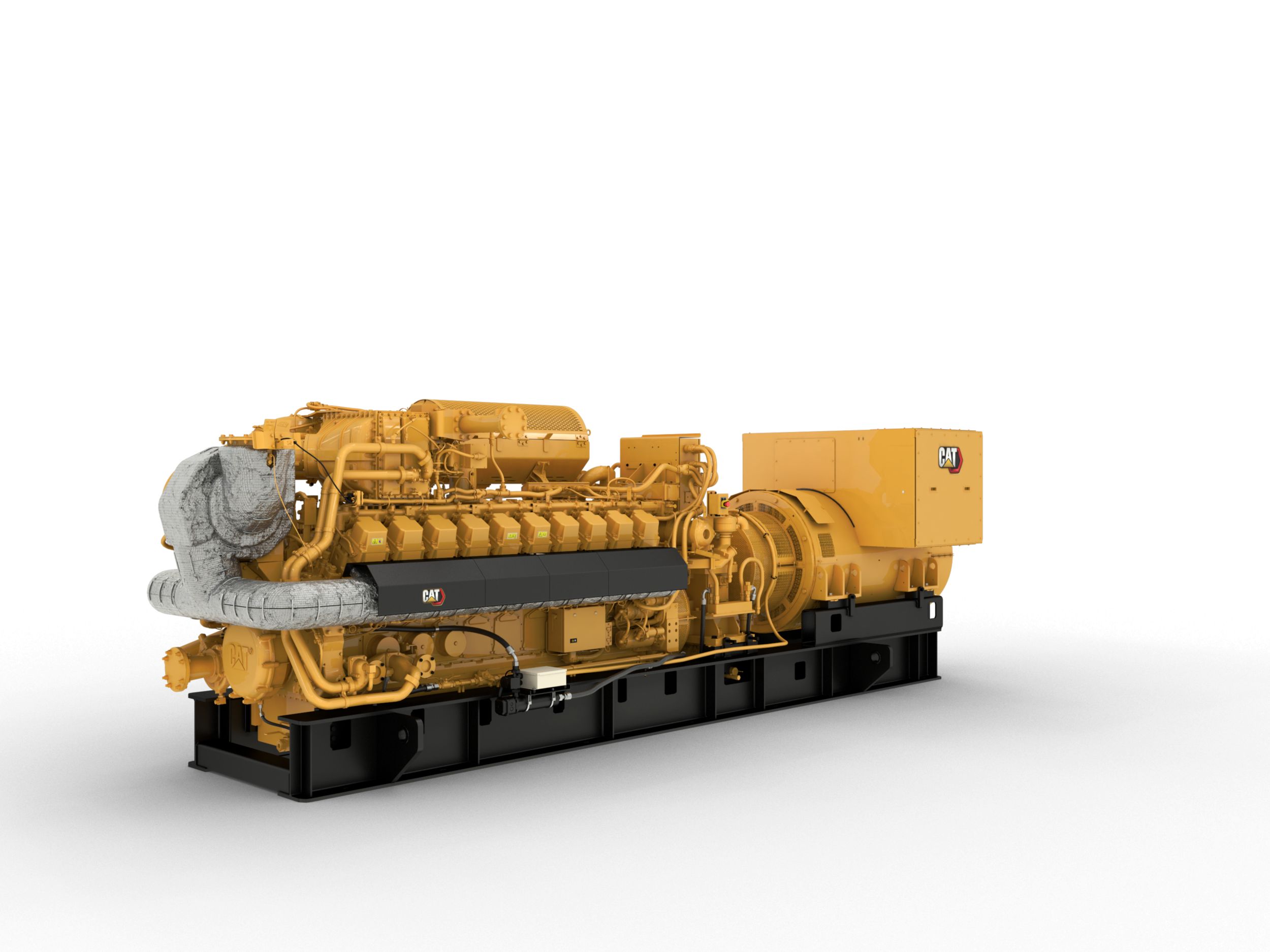

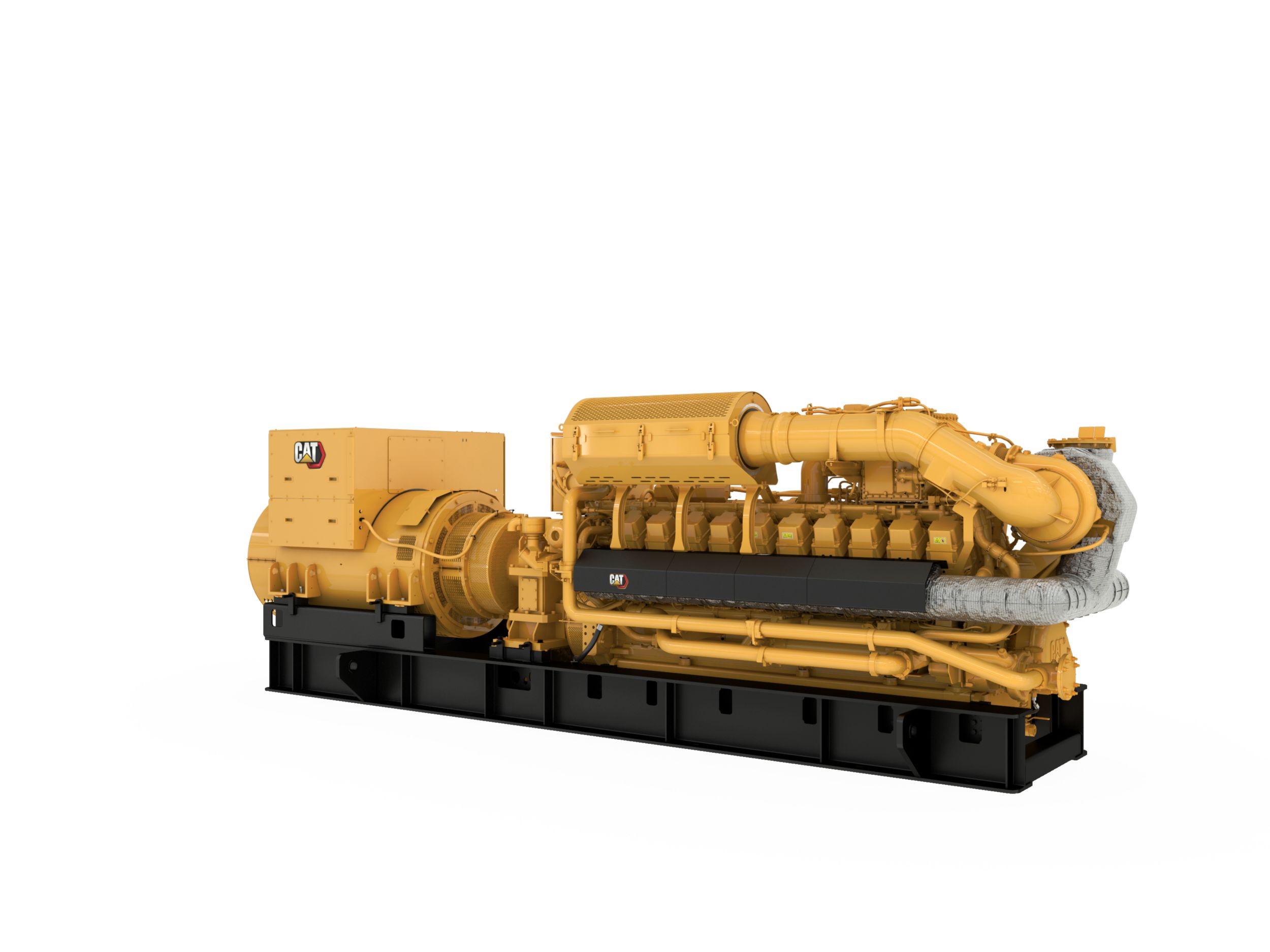

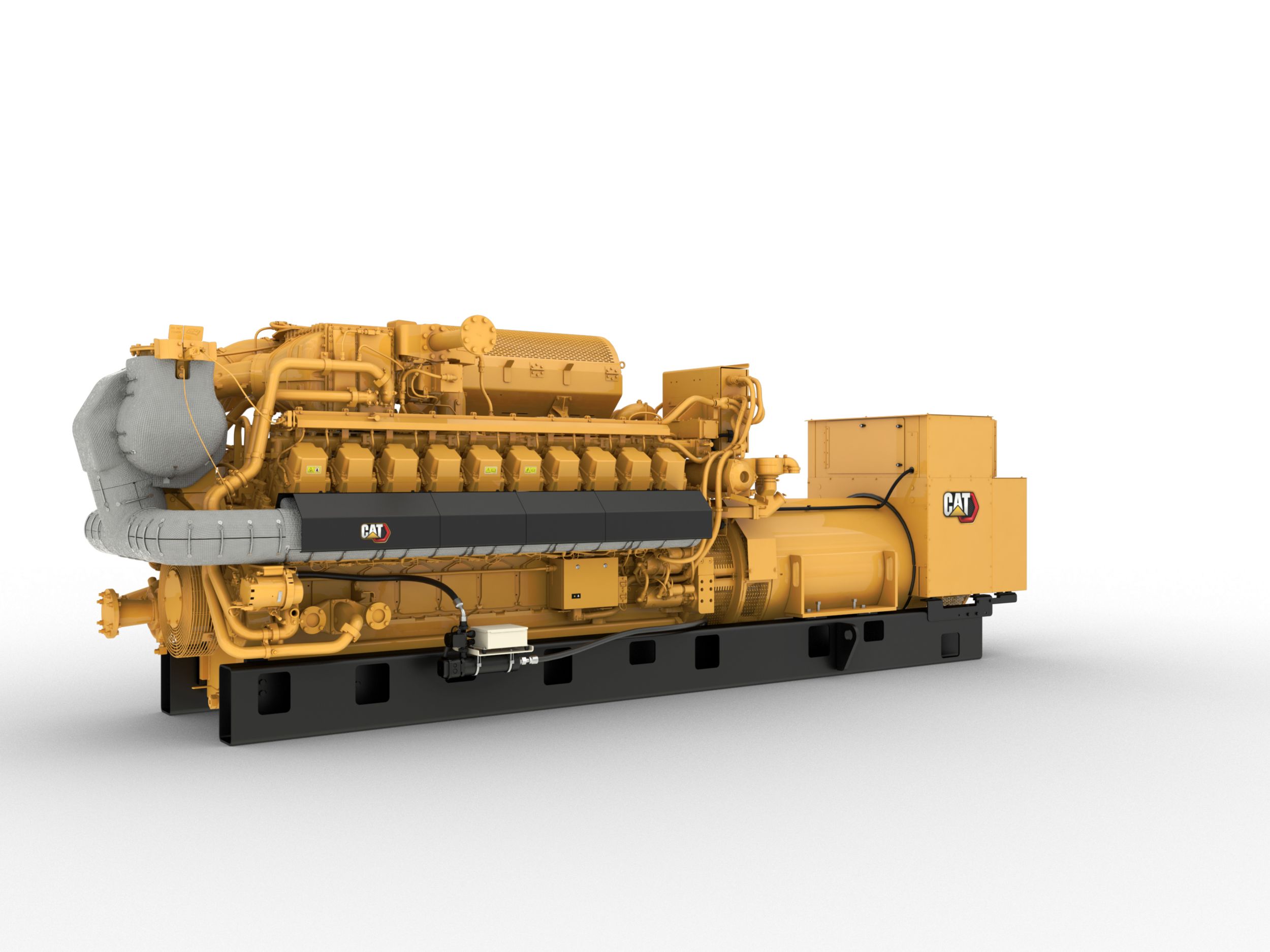

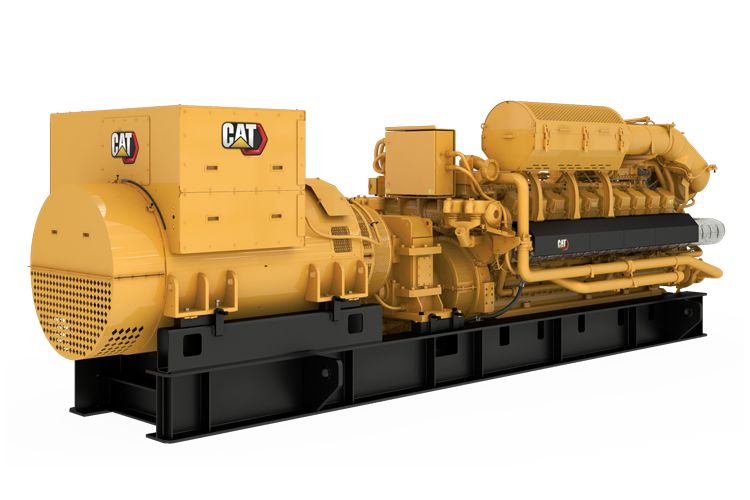

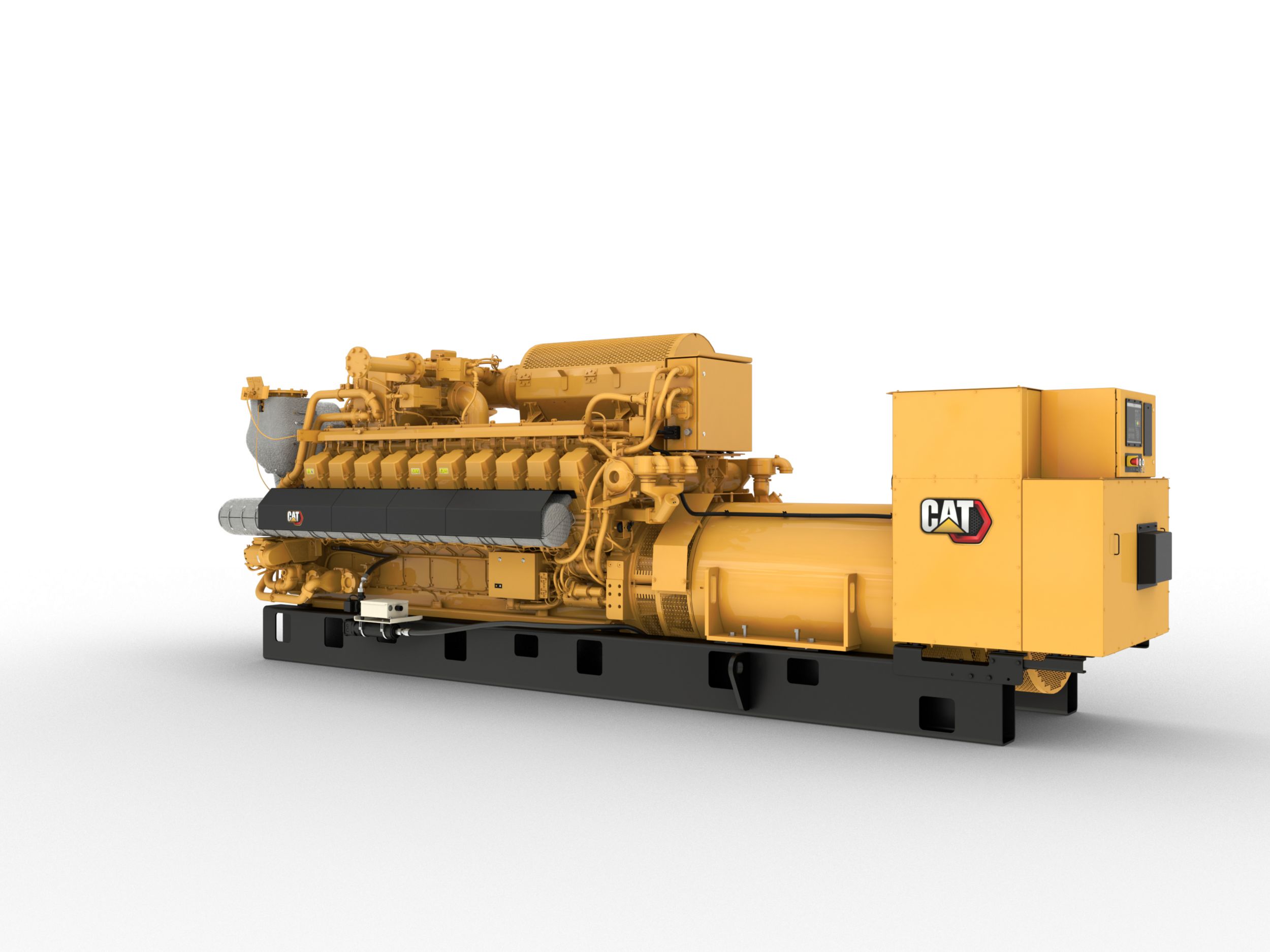

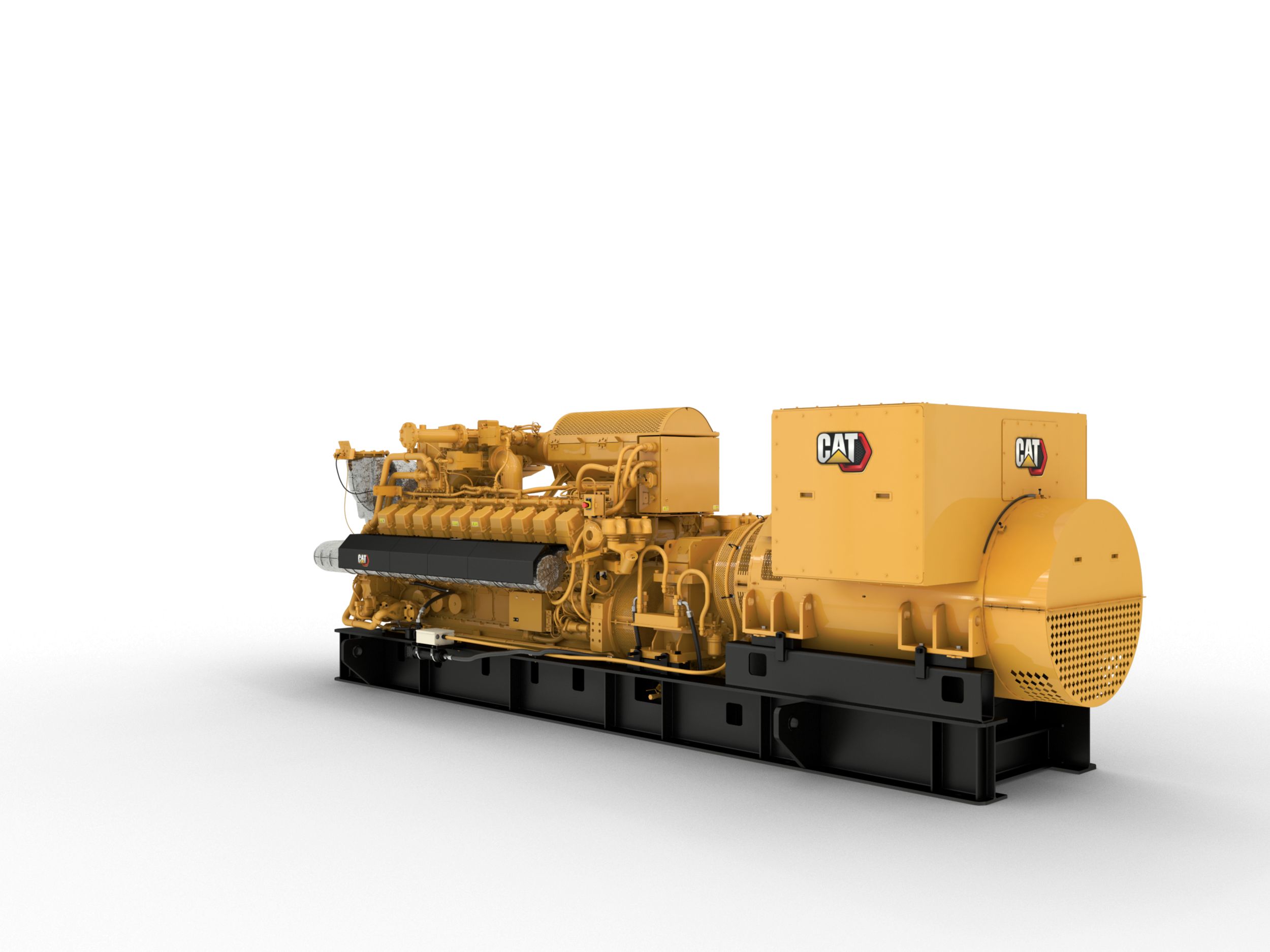

Cat G3520H

Cat G3520H

Cogeneration units

  • Robust high speed block design provides prolonged life and lower owning operationg costs
  • Designed for maximum performance on low pressure pipeline natural gas and hydrogen mixtures
  • Simple open chamber combustion system for reliability and fuel flexibility
  • Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
  • One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection

SR5 Generator
  • Designed to match performance and output characteristics of Caterpillar gas engines
  • Industry leading mechanical and electrical design
  • High efficiency

EMCP 4.3 Control Panel
  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Emissions
  • Meets most worldwide emissions requirements down to 0.5 g/bhp-hr Nox level without aftertreatment

Proven System
  • Field proven in a wide range of applications worldwide
  • Fully prototype tested
  • Certified torsional vibration analysis available

Full Range of Attachments
  • Wide range of bolt-on system expansion attachments
  • Factory designed and tested
  • Flexible packaging options for easy and cost effective installation

Worldwide Product Support
  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Engine Specifications
Engine ModelG3520H
Displacement97.5 l
AspirationTA
Bore170 mm
Stroke215 mm
Compression Ratio12.1

Generator Set Dimensions
Length7668 mm
Width2173 mm
Height2473 mm
Dry Weight - Genset25285 kg

Generator Set Specifications
Continuous Rating2519 / 2500 ekW @ 1.0pf
Fuel TypeNatural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency45.30%
Frequency50 / 60 Hz
RPM1500
Frequency50/60 Hz
