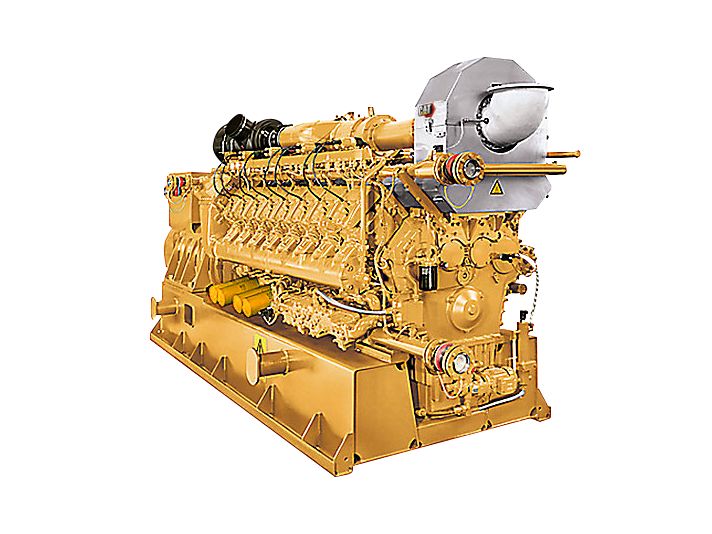

Cat CG170-16

Energy Cat CG170-16

Cat CG170-16

Cogeneration units

  • Miller cycle timing with combustion chamber and spark plug improvement help on saving up to 15% fuel gas per year
  • CG170 (non-miller) is optimized for Island-Mode capability
  • Gearbox helps limit wear and tear on engine components, lowering operating costs and increasing availability

Low installation, Building and Operating Costs
  • Extended maintenance intervals thanks to sooth-free combustion and enlarged oil tank
  • Low fuel consumption due to improved combustion chamber and pre-chamber spark-plugs
  • Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
  • Optimized oil management

Optimized Lubrication Consumption
  • Consumes up to 1900 liter less lube oil per year than comparable models<\li>
  • Longer lubricant change and oil change intervals<\li>

Engine Specifications
Engine ModelCG170-16
Displacement70.8 l
Bore170 mm
Stroke195 mm

Generator Set Dimensions
Length6640 mm
Width1778 mm
Height2210 mm
Dry Weight - Genset14900 kg

Generator Set Specifications
Continuous Rating1560 ekW @1.0pf
Fuel TypeNatural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency43.30%
Frequency50 or 60 Hz
RPM1500 or 1800 rpm
