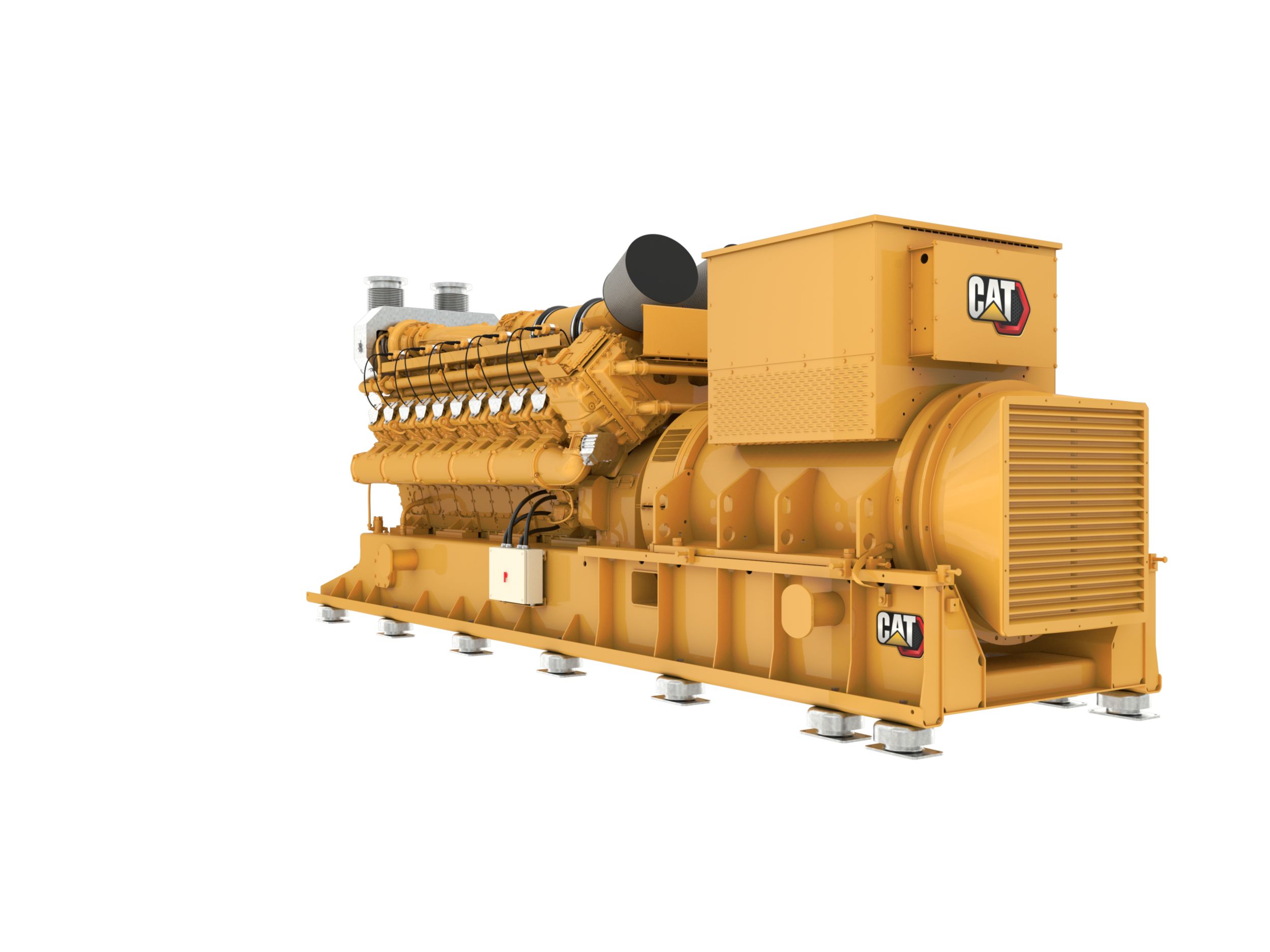

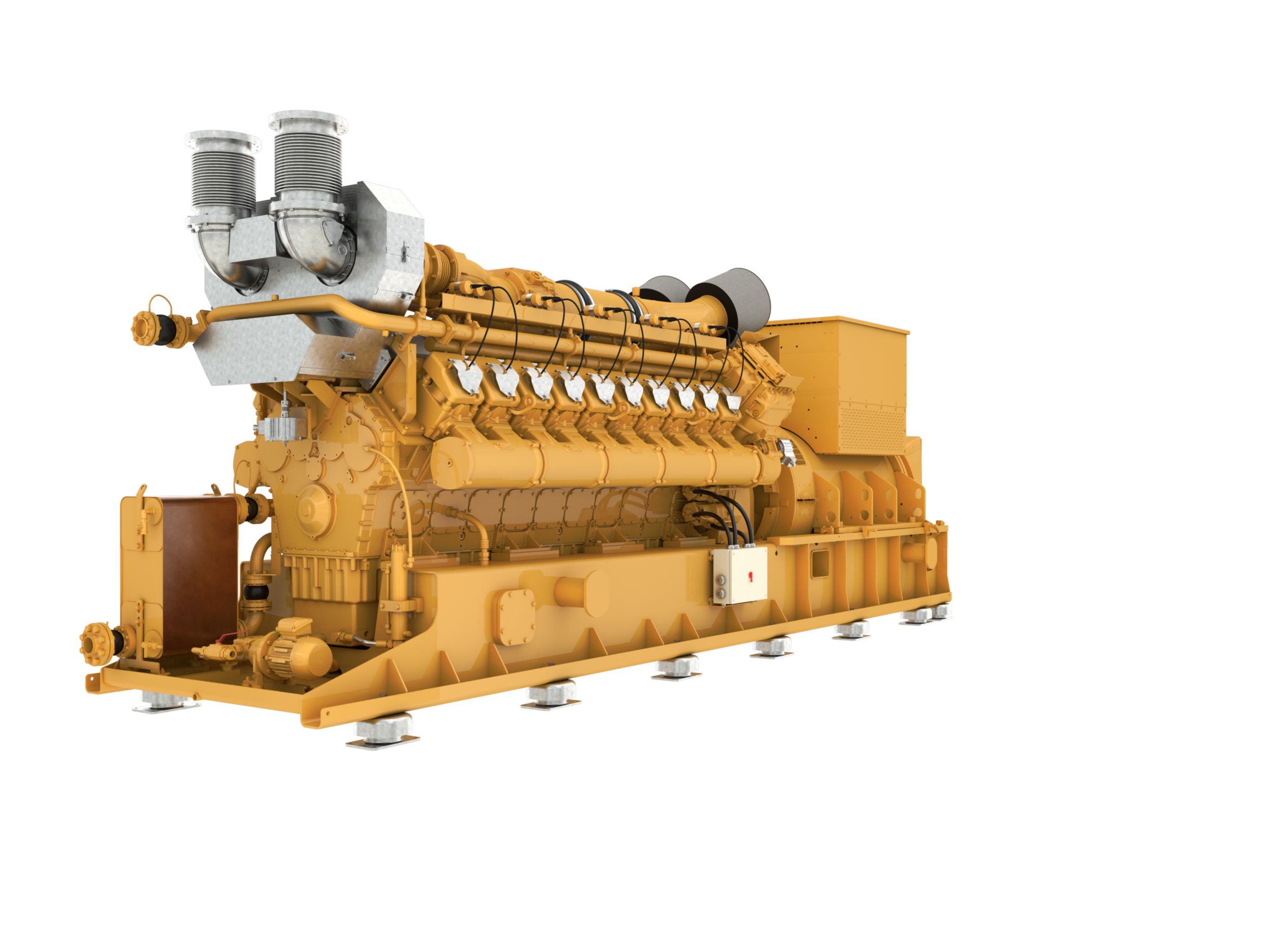

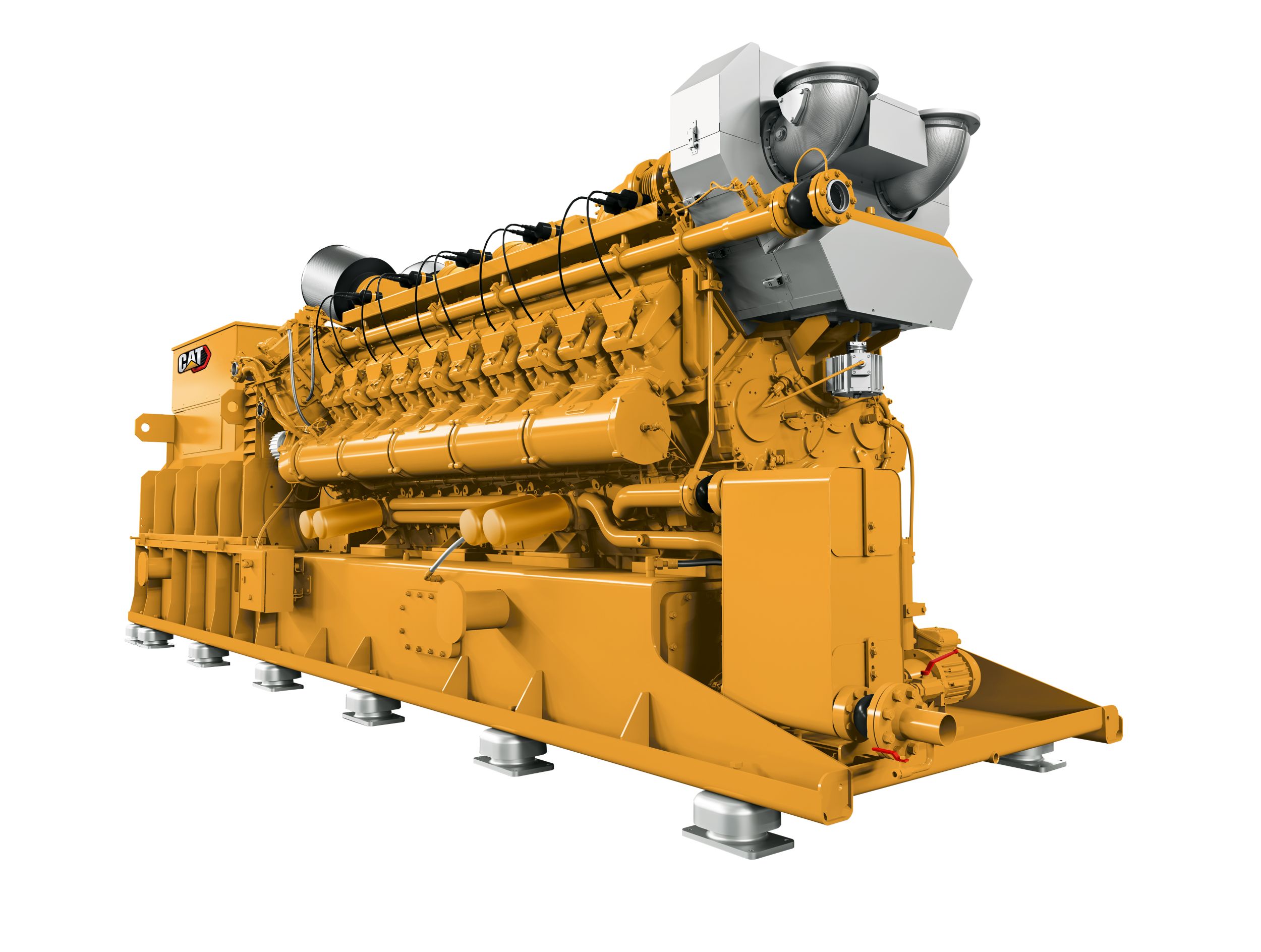

CAT CG170B-20
Cogeneration units
- Up to 45% electrical efficiency with Natural Gas
- 43.6% electrical efficiency with biogas
- Electrical output up to 2,300 kWel
- Reduced vibration and stress on components
Compact Size, High Profitability
- Compact design that delivers up to 15% more power output at the same size as its predecessor
- Long maintenance intervals (up to 80,000 hours)
- Available in different applications, such as natural gas, biogas, wellhead- and propane gas operation
- Maximum flexibility through different engine variants
Optimized Lubrication Consumption
- Consumes ~0.15g/kWh
- Reduced lube oil temperature through better cooling performance
- Savings of up to 3,000 liters of lube oil per year compared to comparable gensets
Engine Specifications
| Engine Model | CG170B-20 |
|---|---|
| Aspiration | TA |
| Bore | 170 mm |
| Stroke | 195 mm |
Generator Set Dimensions
| Length | 6556 mm |
|---|---|
| Width | 1706 mm |
| Height | 2263 mm |
| Dry Weight - Genset | 21490 kg |
Generator Set Specifications
| Continuous Rating | 2300 ekW @1.0pf |
|---|---|
| Fuel Type | Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 45.00% |
| Maximum Standby Rating | 2300 |
| Frequency | 50/60 Hz |
| RPM | 1500 rpm |
