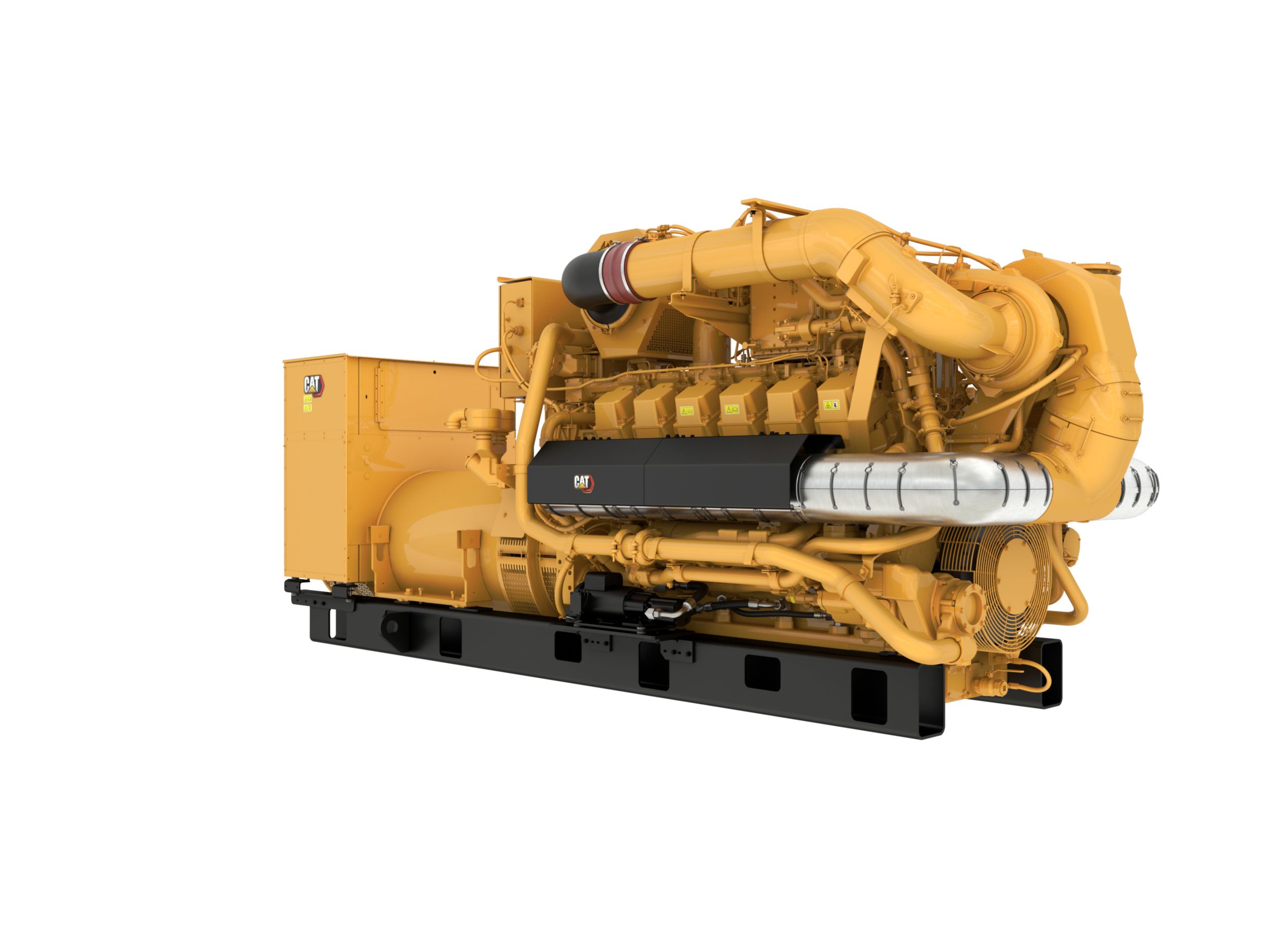

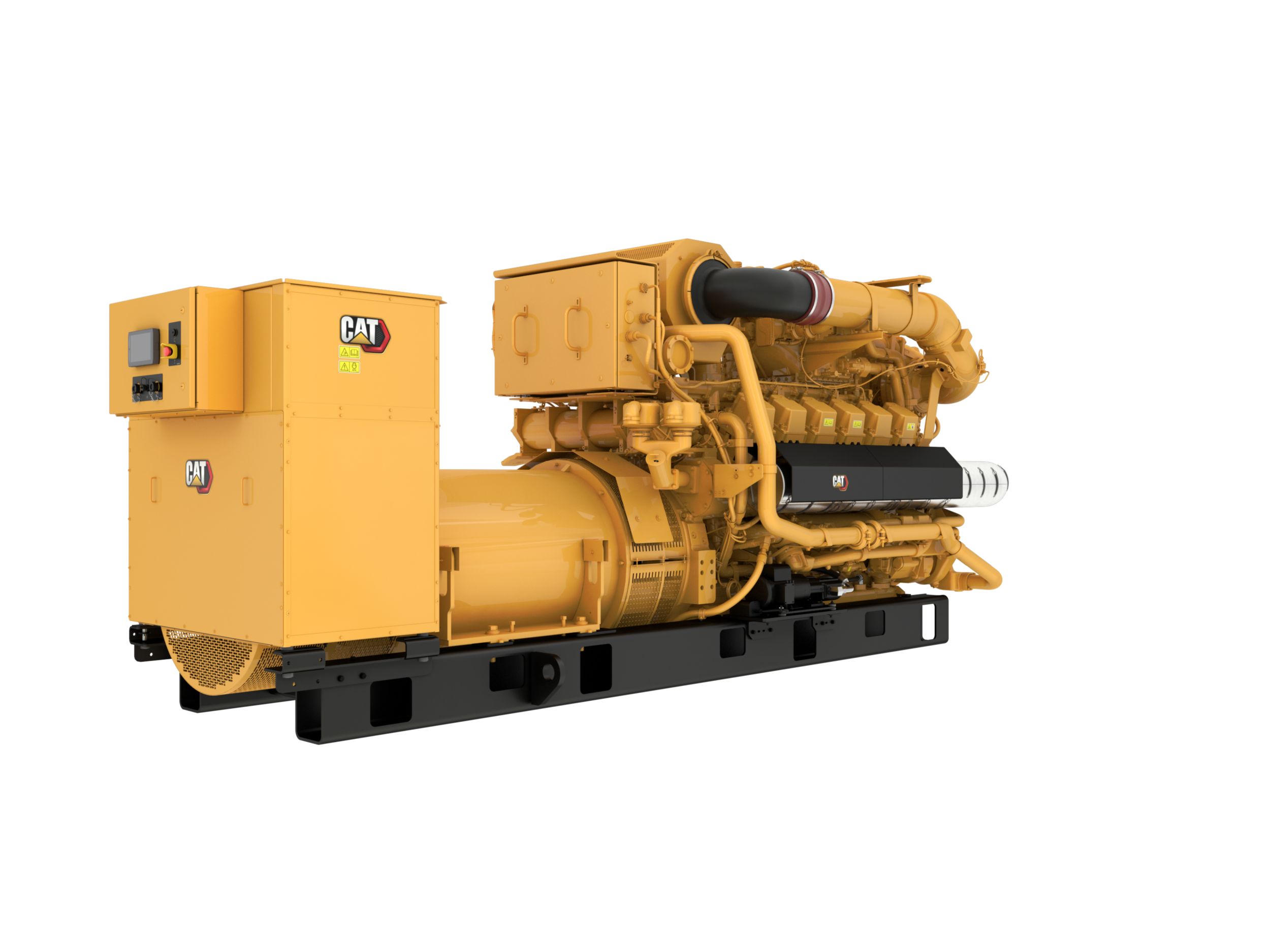

CAT G3512K
Cogeneration units
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
Cat Energy Control System (Cat ECS)
- A cost effective but powerful system
- Modern color touch screen
- Meets UL6200 controls and UL2300 3rd ed. generator set package requirements
- Local annunciation to meet NFPA 110
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr or 250 mg/Nm3 Nox level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Engine Specifications
| Engine Model | G3512K |
|---|---|
| Displacement | 58.6 l |
| Aspiration | TA |
| Bore | 170 mm |
| Stroke | 215 mm |
| Compression Ratio | 10.5 |
| Governor Type | Adem 6 |
Generator Set Dimensions
| Length | 5466 mm |
|---|---|
| Width | 1828 mm |
| Height | 2273 mm |
| Dry Weight - Genset | 16820 kg |
Generator Set Specifications
| Continuous Rating | 1530 ekW @ 1.0pf |
|---|---|
| Fuel Type | Natural Gas & Propane |
| Maximum Electrical Efficiency | 45.3% |
| Frequency | 50 / 60 Hz |
| RPM | 1500 |
| Speed | 1500 RPM |
| Frequency | 50/60 Hz |
